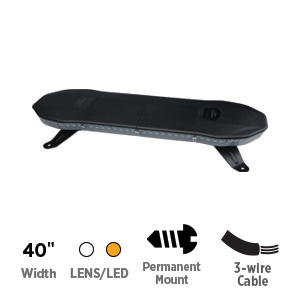

LB5000 Series 40" Clear Lens / Amber LED Light Bar (Bracket Mount, 3-Wire Cable)

Part Number: 100LB0011

Description

LB5000 Series 40″ Class 1 Lightbar, Bracket Mount, Clear Lens / Amber LEDs, 3-wire Cable

Previous part number: 100LB0011-C

Previous series name: Homestead Series

Resources

LB5000 Series ProductSheet

LB5000 Series Lightbar Install Sheet

WarningLightsWiringChart_PDF

Specifications

Voltage9–16 VDC
FunctionWarning light
LED ColorAmber
LED Count104
Lens ColorClear
Length40.16"
Width8.9"
Height3.64"
Connection3-wire Cable
MountingBracket
Amps2.4/3A (min/max)
MaterialPolycarbonate
Flash Pattern Qty10
CertificationsSAE J845/2139 CLASS 1
FMVSS/CMVSS 108
Warranty3-year
