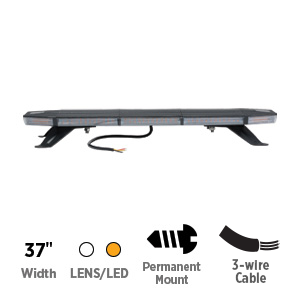

LB3000 Series 36" Clear Lens / Amber LED Light Bar (Bracket Mount, 3-Wire Cable)

Part Number: 100LB0029

Description

LB3000 Series 36″ Class 1 Lightbar, Bracket Mount, Clear Lens / Amber LED, 3-wire Cable, 500 mm

Previous part number: 100LB0029-A

Previous series name: Fontana Series

Resources

LB3000 Series Product Sheet

LB3000 Install Sheet

Warning Lights Wiring Chart PDF

Specifications

Voltage9–16 VDC
FunctionWarning light
LED ColorAmber
LED Count132
Lens ColorClear
Length36.62"
Width12.02"
Height4.75"
Connection3-Wire Cable
MountingBracket
Amps2.4/3.9A (min/max)
MaterialPolycarbonate
Flash Pattern Qty10
CertificationsSAE J845/2139 CLASS 1
FMVSS/CMVSS 108
Warranty3-year
