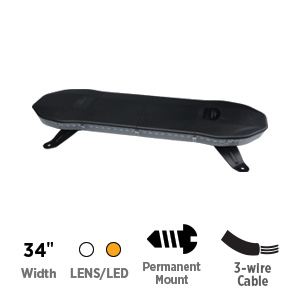

LB5000 Series 34″ Clear Lens / Amber LED Light Bar (Bracket Mount, 3-Wire Cable)
Part Number: 100LB0010
Description
LB5000 Series 34″ Class 1 Lightbar, Bracket Mount, Clear Lens / Amber LEDs, 3-wire Cable
Previous part number: 100LB0010-C
Previous series name: Homestead Series
Resources
Specifications
| Voltage | 9–16 VDC |
| Function | Warning light |
| LED Color | Amber |
| LED Count | 64 |
| Lens Color | Clear |
| Length | 33.86" |
| Width | - |
| Height | 3.64" |
| Connection | 3-wire Cable |
| Mounting | Bracket |
| Amps | 3.2/4A (min/max) |
| Material | Polycarbonate |
| Flash Pattern Qty | 10 |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
