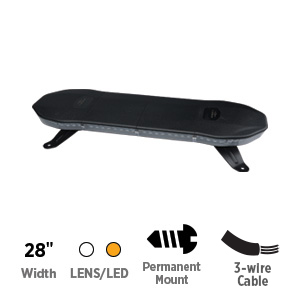

LB5000 Series Homestead 28" Clear/Amber Light Bar (CL-1) (Bracket Mount, 3-Wire Connection)
Part Number: 100LB0009
Description
LB5000 Series Homestead 28″ Lightbar C-1, Bracket Mount, Clear Lens / Amber LED, 3-wire Cable
Previous part number: 100LB0009-C
Resources
Specifications
| Voltage | 9–16 VDC |
| Function | Warning light |
| LED Color | Amber |
| Lens Color | Clear |
| Length | 27.56" |
| Width | 8.9" |
| Height | 3.64" |
| Connection | 3-wire Cable |
| Mounting | Bracket |
| Amps | 3.2/4A (min/max) |
| Material | Polycarbonate |
| LED Count | 82 |
| Flash Pattern Qty | 10 |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
