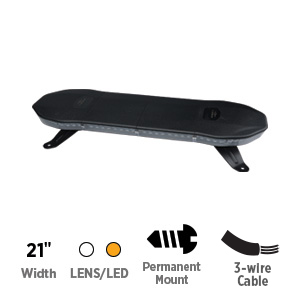

LB5000 Series 21" Clear Lens / Amber LED Light Bar (Bracket Mount, 3-Wire Cable)
Part Number: 100LB0008
Description
LB5000 Series 21″ Class 1 Lightbar, Bracket Mount, Clear Lens / Amber LED, 3-wire Cable
Previous part number: 100LB0008-C
Previous series name: Homestead Series
Resources
Specifications
| Voltage | 9–16 VDC |
| Function | Warning light |
| LED Color | Amber |
| LED Count | 48 |
| Lens Color | Clear |
| Length | 21.22" |
| Width | 7.86" |
| Height | 3.64" |
| Connection | 3-Wire Cable |
| Mounting | Bracket |
| Amps | 2.5/6.5A (min/max) |
| Material | Polycarbonate |
| Flash Pattern Qty | 10 |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
