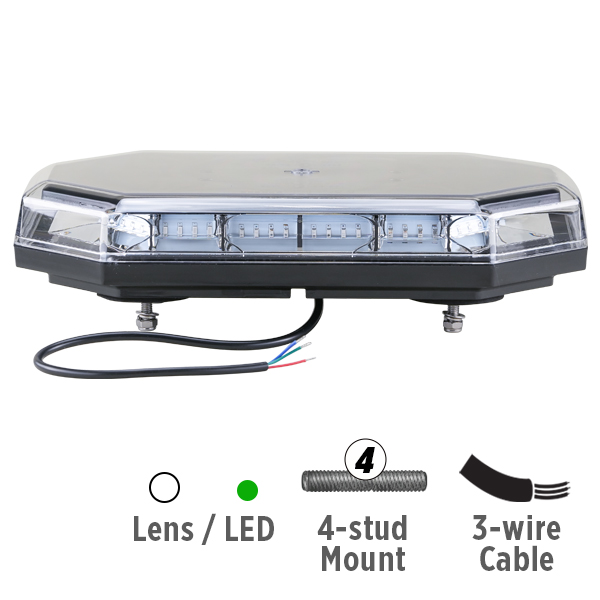

LB1500 Series Phoenix 15" Clear/Green Light Bar (CL-1) (4-Stud Mount, 3-Wire Connection)
Part Number: 100LB0036
Description
LB1500 Series Phoenix 15″ Lightbar Cl-1, C-3, M8 4-stud Mount, Clear Lens / Green LED, 3-wire Cable
Previous part number: 100LB0036-A
Resources
Specifications
| Voltage | 10-30 VDC |
| Function | Warning light |
| LED Color | Green |
| Lens Color | Clear |
| Length | 15.26" |
| Width | 8.65" |
| Height | 3.01" |
| Connection | 3-wire Cable |
| Mounting | Stud |
| Amps | 2.1/3.5A (min/max) |
| Material | Polycarbonate |
| LED Count | 56 |
| Flash Pattern Qty | 10 |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
