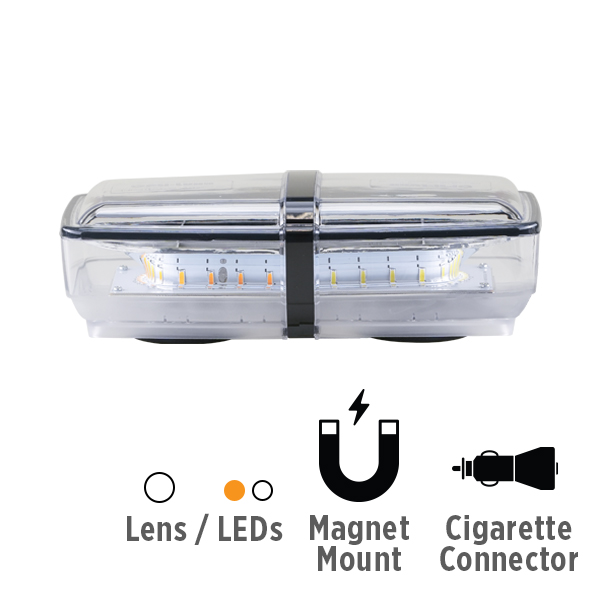

LB1100 Series 11" Clear Lens / Amber & White LED Light Bar (Magnet Mount, Cigarette Lighter Plug/Switch)
Part Number: 100LB0023
Description
LB1100 Series 11″ Class 1 Lightbar, Magnet Mount, Clear Lens / Amber & White LED, 2-button Cigarette Lighter
Previous part number: 100LB0023-A
Previous series name: Sonoma Series
Resources
Specifications
| Voltage | 10-30 VDC |
| Function | Warning light |
| LED Color | Amber, White |
| LED Count | 34 |
| Lens Color | Clear |
| Length | 10.94" |
| Width | 5.70" |
| Height | 3.5" |
| Connection | Cigarette Lighter |
| Mounting | Magnet |
| Amps | 1.57/1.93A (min/max) |
| Material | Polycarbonate |
| Flash Pattern Qty | ~10 |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
