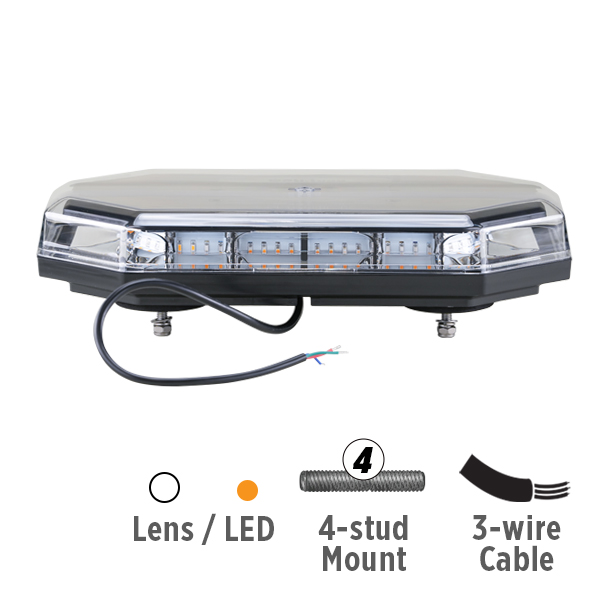

LB1500 Series 15" Clear Lens / Amber LED Light Bar (4-Stud Mount, 3-Wire Cable)
Part Number: 100LB0032
Description
LB1500 Series Class 1 Lightbar with M8 4-stud Mount, Clear Lens / Amber LEDs, and 3-Wire Cable
Previous part number: 100LB0032-A
Previous series name: Phoenix Series
Resources
Specifications
| Voltage | 10-30 VDC |
| Function | Warning light |
| LED Color | Amber |
| LED Count | 56 |
| Lens Color | Clear |
| Length | 15" |
| Width | 15.26" |
| Height | 3" |
| Connection | 3-Wire Cable |
| Mounting | 4-Stud |
| Amps | 2.1/3.5A (min/max) |
| Material | Polycarbonate |
| Flash Pattern Qty | 10 |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
