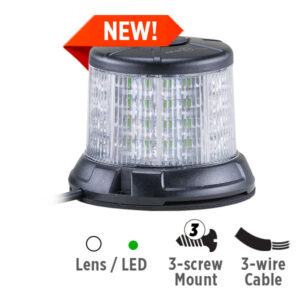

2600 Series 3.5" H x 3.5" D (4.3" Base Diameter) Clear Lens / Green LED High Profile Beacon (3-Screw Mount, 3-Wire Cable)
Part Number: 100BC0023
Description
2600 Series 3.5″ High x 3.5″ Diameter Beacon, Clear Lens / Green LED, 3-Screw Mount and 3-Wire Cable
Base measurement = 4.3″ Diameter
Previous Series Name: Richmond Series
Resources
Specifications
| Voltage | 10–30 VDC |
| Function | Warning light |
| LED Color | Green |
| Lens Color | Clear |
| Height | 3.5" |
| Lens Diameter | 3.5" |
| Base Diameter | 4.3" |
| Connection | 3-Wire Cable |
| Mounting | 3-Screw |
| Amps | 0.4A/0.6A min/max |
| Material | Polycarbonate |
| LED Count | 64 |
| Flash Pattern Qty | 11 |
| Certifications | SAE J845 Class 3 |
| Warranty | 3-year |
