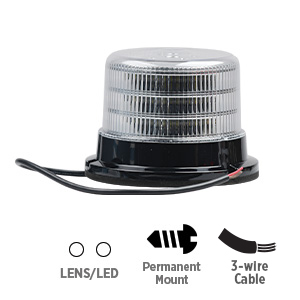

4000 Series High Profile Beacon 5" High x 6" Lens Diameter (Base Diameter = 6.73") Clear Lens / White LEDs (3-Screw Mount, 3-Wire Cable)
Part Number: 100BC0001
Description
4000 Series High Profile Class 1 Beacon.
5.99″ Lens Diameter (6.73″ Base Diameter) x 4.88″ Overall Height.
Clear Lens / White LEDs with 3-wire Cable and 3-screw mount.
Previous part number: 100BC0001-A
Previous series name: Charlotte Series
Resources
Specifications
| Voltage | 10–30 VDC |
| Function | Warning light |
| LED Color | White |
| Lens Color | Clear |
| Diameter | Lens: 5.99" Base: 6.73" |
| Overall Height (Base + Lens) | 4.88" |
| Connection | 3-Wire |
| Mounting | 3-Screw |
| Amps | 1.02/1.4A (min/max) |
| Material | Polycarbonate |
| LED Count | 36 |
| Flash Pattern Qty | 4 |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
