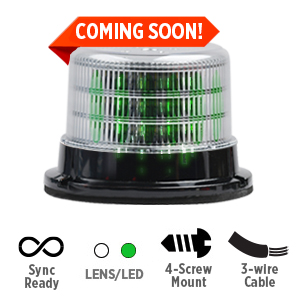

4100 Series 6"D x 5"H Round Clear Lens / Green LED High Profile Beacon (4-Screw Mount, 3-Wire Cable)
Part Number: 100BC0020
Description
4100 Series 6-inch Diameter x 5-inch High Class 3 Beacon, 4-screw, Clear Lens / Green LED, 3-wire Cable
This light can be wired to sync with the 610 Series Oval Warning Light or other 4100 Series Beacons for a maximum of 8 synchronized lights.
Coming Soon!
Resources
Specifications
| Voltage | 10–30 VDC |
| Function | Warning light |
| LED Color | Green |
| Lens Color | Clear |
| Diameter | 6.57" |
| Height | 5.28" |
| Connection | 3 Wire Cable |
| Mounting | 4 Screw |
| Amps | 0.39 / 0.49A @13.5Vdc (min/max) |
| Material | Polycarbonate |
| LED Count | 36 |
| Flash Pattern Qty | 7 |
| Certifications | SAE J845/2139 CLASS 3 FMVSS/CMVSS 108 |
| Warranty | 3-year |
