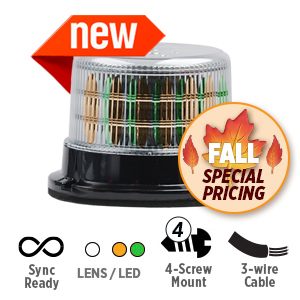

4100 Series High Profile Beacon 5" High x 6" Lens Diameter (Base Diameter = 6.57") Clear Lens / Dual Color Amber and Green LEDs (4-Screw Mount, 3-Wire Cable)
Part Number: 100BC0022
Description
4100 Series High Profile Class 3 Beacon.
6.18″ Lens Diameter (6.57″ Base Diameter) x 5.28″ Overall Height.
Clear Lens / Amber and Green LEDs with 3-wire Cable and 4-screw mount.
This light can be wired to sync with the 610 Series Oval Warning Light or other 4100 Series Beacons for a maximum of 8 synchronized lights.
Resources
Specifications
| Voltage | 10–30 VDC |
| Function | Warning light |
| LED Color | Amber & Green |
| Lens Color | Clear |
| Height | 5.28" |
| Lens Diameter | 5.18" |
| Base Diameter | 6.57" |
| Connection | 3 Wire Cable |
| Mounting | 4 Screw |
| Amps | 1.0 / 1.27A @13.5Vdc (min/max) |
| Material | Polycarbonate |
| LED Count | 36 |
| Flash Pattern Qty | 15 |
| Certifications | SAE J595 Class 2 (Amber or Amber/Green) SAE J595 Class 3 (Green) |
| Warranty | 3-year |
