600 Series 6" Oval Amber Mid Turn Marker with Guard and Gasket (Screw Mount, 3-Wire Connection)
Part Number: 110CM0002
Description

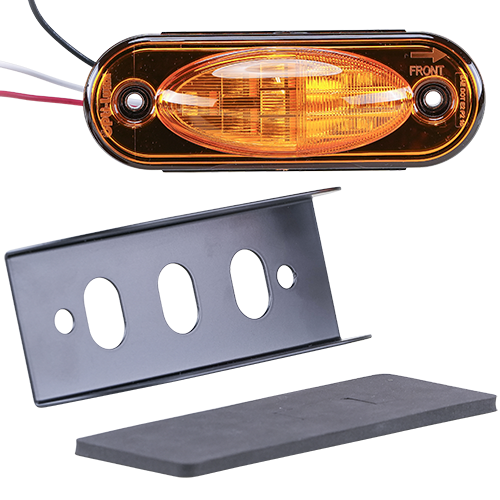

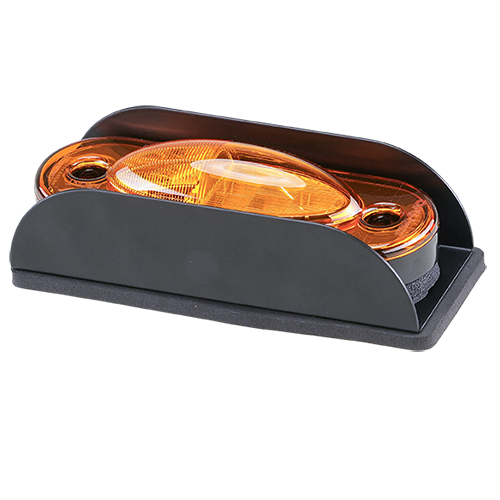

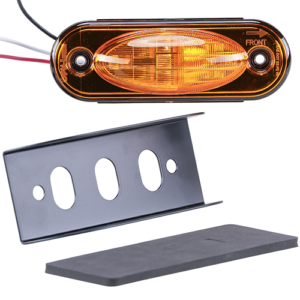

600 Series 6″ Oval Amber Mid Turn Marker with Guard and Screw/Grommet Mount, and 3-Wire Connection
To order light only, without guard, use part number 110CM0001.
To order the guard only, use part number 100BR0003.
Previous part number: ECVO62MTY-FA
Contact Information
Call (616) 379-4142 or email sales@opti-luxx.com to order.
Specifications
| Voltage | 12V |
| Function | Mid-Turn Marker |
| LED Color | Amber |
| Lens Color | Amber |
| Regulation | SAE DOT E2 P2 15 |
| Length | 7.44" |
| Width | 3.2" |
| Height | 1.57“ |
| Connection | Three Wires |
| Mounting | Screw Includes Black Metal Guard and Gasket |
| Amps | DI：324mA±10% @13.5V SM：140mA±10% @13.5V |
| Material | PC lens, ABS+PC housing |
| LED Count | 10 |
