400 Series 4" Round Clear/Amber Warning Light (Grommet Mount, 3-Pin Amp Connector)
Part Number: 100WA0002
Description

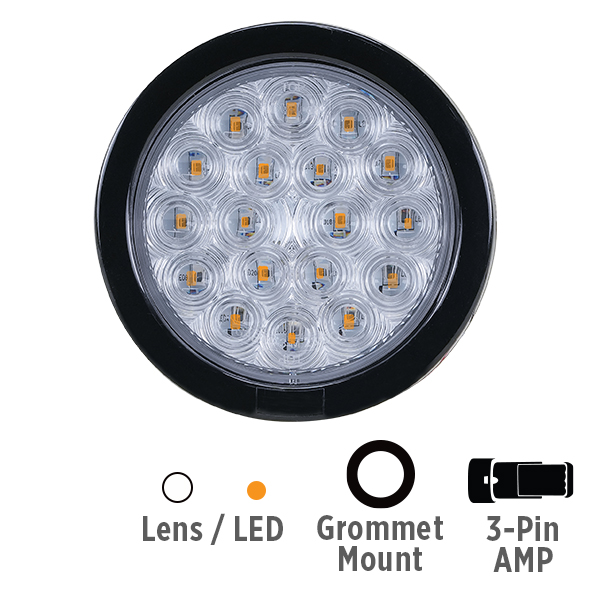

400 Series 4″ Round Warning Light, Clear Lens / Amber LED, with Grommet and 3-pin Amp Connector Super Seal (SS3P)
Previous series name: Michigan 4″ Round
Previous part number: ERDREBZA and 100WA0002-A
Resources
Specifications
| Voltage | 9–16 VDC |
| Function | Warning light |
| LED Color | Amber |
| Lens Color | Clear |
| Diameter | 5.20" |
| Height | 1.05" |
| Connection | 3P Male AMP Plug Super Seal (SS3P) |
| Mounting | Grommet |
| Amps | 203/317mA (min/max) |
| Material | Polycarbonate |
| LED Count | 18 |
| Flash Pattern Qty | 8 |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
