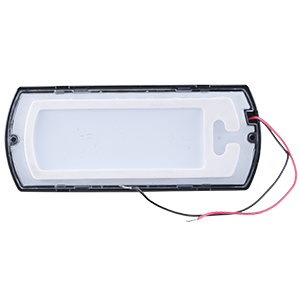

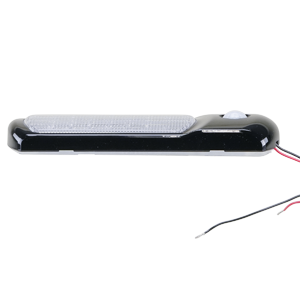

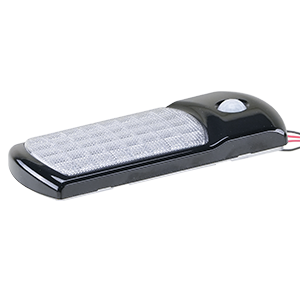

DL2000 Series 2.8" x 6.7" Rectangle White Dome Light with Passive Infrared Sensor and Black Bezel (Screw Mount, 2-Wire Connection)
Part Number: 100DL0008
Description
DL2000 Series 2.8″x6.7″ Rectangle White Dome Light with Passive Infrared Sensor (PIR) and Black Bezel — Screw Mount and 2-Wire Connection
PIR sensor activates LEDs only when sensing heat and movement. Will not accidentally activate due to shifting cargo.
Previous part number: 100DL0008-A
Contact Information
Call (616) 379-4142 or email sales@opti-luxx.com to order.
Specifications
| Voltage | 12/24V |
| Function | Passive Infrared-Activated Dome light |
| LED Color | White |
| Lens Color | Clear |
| Regulation | EMC R10 |
| Length | 6.7" |
| Width | 2.8" |
| Height | 0.7" |
| Connection | 2-Wire |
| Mounting | Screw |
| Amps | 410mA±15% @13.5V 200mA±15% @28V |
| Lumens | 520 lm |
| Material | PC |
| LED Count | 40 |
