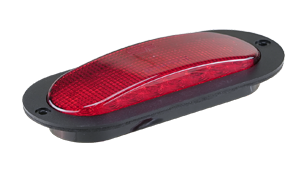

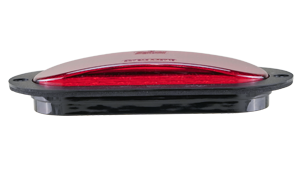

650 Series 6" Oval Red Stop/Turn/Tail (Flange Mount, 3-Wire Connection)
Part Number: 100CS0009
Description
650 Series 6″ Oval Red Stop/Turn/Tail with Flange Mount and 3-Wire Connection
Previous part numbers: ECVO64STT-FA, 100CS0007-A
Contact Information
Call (616) 379-4142 or email sales@opti-luxx.com to order.
Specifications
| Voltage | 12V |
| Function | Stop, tail, turn |
| LED Color | Red |
| Lens Color | Red |
| Regulation | SAE II6SS2TT2 DOT 21 |
| Length | 7.44" |
| Width | 3.2" |
| Height | 1" |
| Connection | Three Wires |
| Mounting | Flange |
| Amps | Tail：17mA±3mA @13.5V Stop：306mA±10% @13.5V |
| Material | PC |
| LED Count | 20 |
