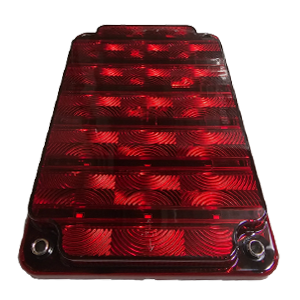

850 Series 8.5″ x 5.25″ Rectangle Red Stop/Tail/Turn (Screw Mount, Integrated AMP SuperSeal Connector)
Part Number: 100CS0006
Description
850 Series 8.5″ x 5.25″ Rectangle Light, Stop/Tail/Turn, Integrated AMP SuperSeal Connector, Red
Designed as an aftermarket solution to replace OEM incandescent or LED lights on Thomas C2 Saf-T-Liner buses.
Previous part numbers: ECVRT861STT and 100CS0006-A
Resources
Specifications
| Voltage | 12V |
| Function | Stop, Tail, Turn |
| LED Color | Red |
| Regulation | SAE SS2TT2II6 DOT21 |
| Height | 8.4" |
| Width | 5.4" |
| Depth | .75" |

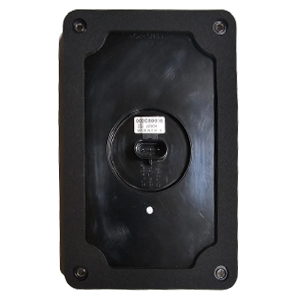

| Connection | Integrated AMP SuperSeal Connector |
| Mounting | Screw |
| Current Draw | Stop & Turn: 323mA ±15% @13.5V Tail: 23mA ±20% @13.5V |
| Material | PC |
| LED Count | 18 |
