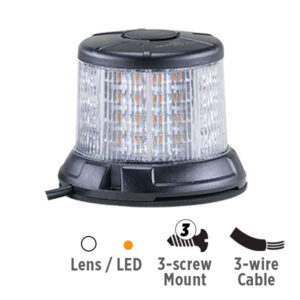

2600 Series 3.5" H x 3.5" D (Base Diameter = 4.3") Clear Lens / Amber LEDs High Profile Beacon (3-Screw Mount, 3-Wire Cable)
Part Number: 100BC0012
Description
2600 Series 3.5″ High x 3.5″ Diameter (4.3″ Base Diameter), 3-Screw Mount, Clear Lens / Amber LED, 3-Wire Cable 3660mm
Previous part numbers: ELB24BCH0AC and 100BC0012-A
Previous series name: Richmond Series
Resources
Specifications
| Voltage | 10–30 VDC |
| Function | Warning light |
| LED Color | Amber |
| Lens Color | Clear |
| Height | 3.5" |
| Lens Diameter | 3.5" |
| Base Diameter | 4.3" |
| Connection | 3-Wire Cable |
| Mounting | 3-Screw |
| Amps | 0.88A / 2.2A min/max |
| Material | Polycarbonate |
| LED Count | 64 |
| Flash Pattern Qty | 11 |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
