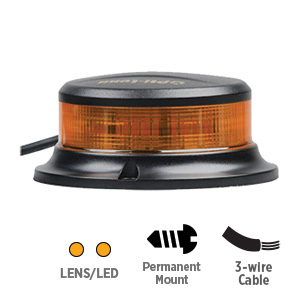

2500 Series 1.9″ High x 3.5″ Lens Diameter (Base Diameter = 4.4″) Amber/Amber Low Profile Beacon (Screw Mount, 3-Wire Cable)
Part Number: 100BC0005
Description
2500 Series Low Profile Beacon: 1.9″ High x 3.5″ Lens Diameter (4.4″ Base Diameter) with Screw Mount, Amber Lens / Amber LED, and 3-Wire Cable Connection
Previous part numbers: ELB24BCL0AA and 100BC0005-A
Previous series name: Bristol Series
Resources
Specifications
| Voltage | 10–30 VDC |
| Function | Warning Light |
| LED Color | Amber |
| Lens Color | Amber |
| Height | 1.9" |
| Lens Diameter | 3.5" |
| Base Diameter | 4.4" |
| Connection | 3-Wire Cable |
| Mounting | Screw |
| Amps | 2.9/3.5A (min/max) |
| Material | Polycarbonate |
| LED Count | 48 |
| Flash Pattern Qty | 11 Note: Default Pattern 1 is SAE J845 Class 1 Compliant |
| Certifications | SAE J845/2139 CLASS 1 FMVSS/CMVSS 108 |
| Warranty | 3-year |
